Underground Cable Fault Locator with 0.2m Accuracy

Name: Underground Cable Fault Locator with 02m Accuracy
Brand: XZH TEST
Price: 1 USD

Quality Underground Cable Fault Locator with 0.2m Accuracy for sale

Brand Name : XZH TEST

Model Number : XHDD503C

Certification : CE/ISO

Place of Origin : China

MOQ : 1 unit

Payment Terms : T/T

Supply Ability : 2000 units/year

Delivery Time : 5-8 work days

Packaging Details : Wooden case

Bandwidth : 200Hz~600Hz.

Maximum signal gain : >=112dB.

Fixed-point accuracy : ＜0.2m.

Contact Now

XHDD503C Underground Cable Fault Pinpoint Locator

Introduction

The XHDD503C is a professional power cable fault locator adopting acoustic and magnetic synchronization technology. It detects electronic flashover from an impact discharge generator via a specialized probe, achieving precise positioning through auditory and visual analysis within rough measurement ranges while collecting acoustic-magnetic signal time differences.

Features

5-inch high-brightness touch LCD with sunlight visibility
Acoustic-magnetic synchronous positioning technology with automatic time difference calculation and manual adjustment capability
Advanced background noise reduction with multiple filtering options and path deviation indication
Multi-layer physical isolation signal sensors with IP65 waterproof rating
Built-in large-capacity lithium battery with extended standby time and fast charging capability
Compact, lightweight design with intuitive operation and simple user interface

Technical Specifications

Parameter	Specification
Filter Parameters	All-pass: 100Hz~1600Hz, Low pass: 100Hz~300Hz, Qualcomm: 160Hz~1600Hz, Bandpass: 200Hz~600Hz
Output Impedance	350Ω
Acoustomagnetic Positioning Accuracy	< 0.2m
Path Identification Accuracy	< 0.5m
Standby Time	> 8 hours
Operating Temperature	-25~65℃
Relative Humidity	≤90%

Packing List

Product Details

Underground Cable Fault Locator with 0.2m Accuracy

Product Tags:

underground cable fault locator

cable fault pinpoint detector

underground wire fault finder

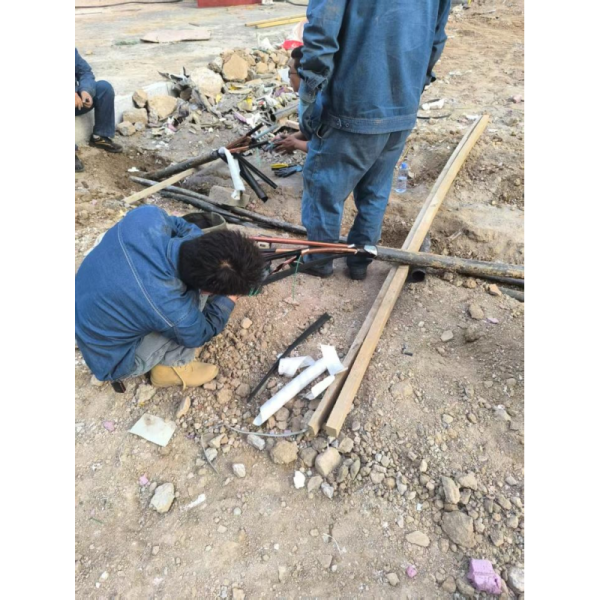

Underground Cable Fault Locator with 0.2m Accuracy Images
