Product Description
The pulse capacitor, which stores the charging energy of the small-power power supply within a certain time interval, releases the stored energy quickly within a very short time interval at a certain moment of need. This process creates a strong impact current and a strong impact power. High-voltage impulse discharge test, high-energy physics, oscillation circuit, geological prospecting and other fields are the main areas where it is used. Product Parameters
- Ambient temperature: -20~+50ºC;
- Altitude: ≤2000 meters, if it is greater than 2000 meters, it will be explained separately;
- Capacitance error: ±5%;
- Voltage resistance between poles: 1.1~1.5Un 2s Pole to shell: 2Un 60s;
- Insulation resistance: RC≥7500MΩ·uF;
- Loss: ≤0.01 (1kHz).
Model description and List
Model Description

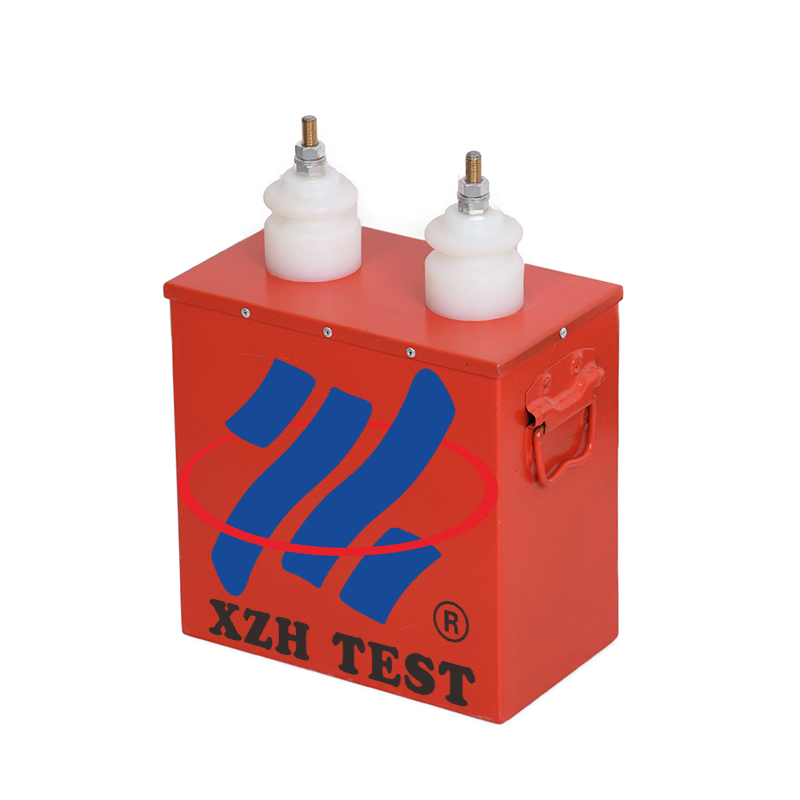

Example: XHCC-8/15 pulse capacitor
1. 4--Rated capacitance 8uF
2. 35--Rated voltage level 15kV
Precautions and Common Faults
1. It is strictly forbidden to hit and collided the high-voltage pulse capacitor, otherwise the internal film will be easily damaged.
2. When using Pulse Energy Storage Capacitors, please read the instructions and the content of the capacitor label to prevent overvoltage use.
3. During use, pay attention to the withstand voltage and safety distance of the connecting wire.
4. After the test is completed, the high voltage end must be fully discharged.
5. During use, if there is abnormal sound inside the capacitor, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If there are bulges or bulges on the capacitor shell, it is recommended to stop using it, as there is a risk of deterioration of the internal material and insulation reduction.
