SF6 Density Relay Tester with Color LCD

Name: SF6 Density Relay Tester with Color LCD
Brand: XZH TEST
Price: 1 USD

Brand Name : XZH TEST

Model Number : XHJB600

Certification : ISO CE

Place of Origin : Xi'an Shaanxi China

MOQ : 1set

Payment Terms : T/T

Supply Ability : 3000unit/year

Delivery Time : 5-8 work days

Packaging Details : wooden packaging

Measuring range : 0～1.000 MPa; Accuracy: 0.25 class

Contact Now

Product Overview

The XHJB600 SF6 Gas Density Relay Calibrator is a portable calibrator used for the standard conversion of SF6 gas pressure. It can also automatically calibrate SF6 density meters and pressure gauges.

Features

3.5-inch color LCD display with Chinese user interface for easy operation.
Displays real-time pressure, pressure converted to 20℃, and ambient temperature.
Stores up to 100 groups of measurement data with non-volatile memory.
Equipped with RS-232 interface for data upload to a PC.
Quick-connect fittings for instrument piping, ensuring convenience and low leakage rate.
Self-calibration function for periodic correction after long-term use.
Adopts high-precision pressure sensor and magnetic fluid technology.

Technical Parameters

Measuring range: 0～1.000 MPa; Accuracy: 0.25 class
Pressure resolution: 0.001 MPa
Temperature range: -20℃～60℃; Resolution: 0.1℃
Power supply: AC 220V±10% 50Hz; DC 12V/1.5A

Product Tags:

Color LCD Relay Protection Tester

SF6 Density Microcomputer Relay Tester

Microcomputer SF6 Density Relay Tester

Quality SF6 Density Relay Tester with Color LCD for sale

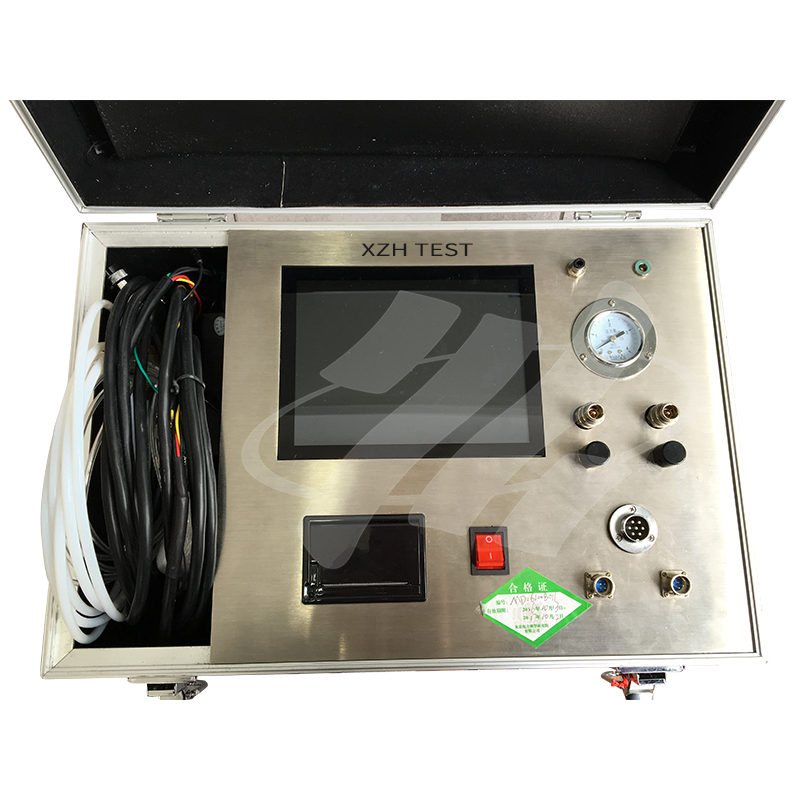

SF6 Density Relay Tester with Color LCD Images
